Track My Bike 'Canyon Roadlite 5'

ilreme 2021. 9. 19. 23:10

1. Bike Model name : Canyon Roadlite 5

   - Order date / Price : 2021-09-15 / EUR 938.79 (KRW 1,390,000)
   - Store : Canyon online brand shop
   - Spec : refer to the following spec


2. Spec

1) Exploded drawing

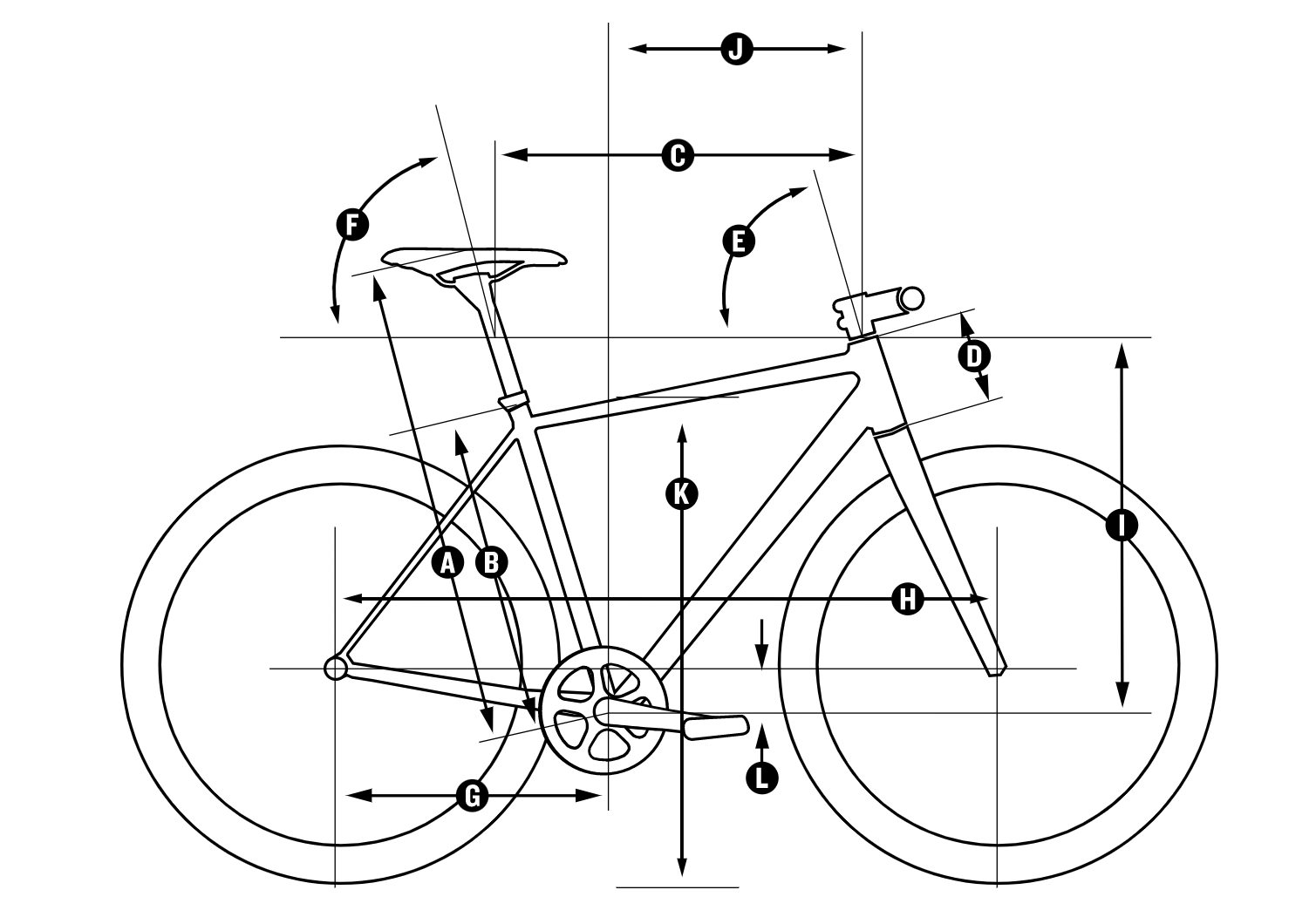

2) Geometry & dimensions

2-1) Basic geometry

BODY HEIGHT IN CM   180
INSEAM IN CM   89
 (A) SEAT HEIGHT IN MM   710 - 810
 (B) SEAT TUBE LENGTH IN MM   522
 (C) TOP TUBE LENGTH IN MM   587
 (D) HEAD TUBE LENGTH IN MM   130
 (E) HEAD TUBE ANGLE   72.15°
 (F) SEAT TUBE ANGLE   73.5°
 (G) CHAINSTAY LENGTH IN MM   415
 (H) WHEEL BASE IN MM   1,035
 (I) STACK IN MM   563
 (J) REACH IN MM   420
 (K) STAND-OVER HEIGHT IN MM   800
 (L) BOTTOM BRACKET OFFSET   73

2-2) Component geometry

SPACER IN MM   25.0
STEM LENGTH IN MM   90
HANDLEBAR WIDTH IN MM   600
CRANK LENGTH IN MM   172.5
CHAINRING SIZE   46
SEAT POST DIAMETER IN MM   27.2
SEAT POST LENGTH IN MM   330
MAXIMUM SEAT POST INSERTION DEPTH IN MM   190
SEAT POST INSERTION DEPTH IN MM   90
WHEEL SIZE   28"
DISC SIZE IN MM   160

3. Tune-up/Dress-Up Parts

1) Brake : Shimano Deore M6100 2 Piston Hydraulic Disc Brake
  - Order date/Store/Price : 21-08-24 / Aliexpress / $141.21
  - Spec : BL-M6100, BR-M6120, SM-BH90-SS, J04C(Ice Metal Pad)



2) Brake Adaptor :  Post mount to Flat mount
  - 중고나라 거래날짜/판매자/가격 : 21-09-17 / 발파맨 /18,000원
  - Spec : Shmimano SM-MA-F160 P/D(Front), PRG R160 PM/FM(Rear)


3) Seat Post : OG-EVKIN Carbon seat post
  - Order date/Store/Price : 21-09-19/ Aliexpress / $48.70
  - Spec : 27.2 mm/400 mm, 210g

4) Handlebar Grip : ODI Siliconee Soft grip - Celeste Green
  - Order date/Store/Price : 21-09-24 / Aliexpress / $10.68
    → 체레스테라고는 하는데.. 전혀 색상이 맞지 않아 탈거함

4) Handlebar Grip :
  - Order date/Store/Price : 21-10-08/ 도트픽스 / 1,500원/Pair
  - Spec : 엄청 저렴하고 폭신폭신해서 구입 했는데 좋음.

5) Pedal : Racework Nylon Pedal - Celeste Green
  - Order date/Store/Price : 21-09-24/ Aliexpress / $14.10

6) Bottle Cage &Bottle : Bianchi Canival cage,  Bianchi fly bottle
  - Order date/Store/Price : 21-09-27/ 디딩그루 / 33,000원

7) Cockfit Accessory : SQLAB Inner bar 411 Black
  - Order date/Store/Price  : 21-09-27 / 송파비에이/ 45,000원



8) Saddle : Giant Fleet SLR, Accessory : UNICLIP NUMEN, FENDER
  - Order date/Store/Price : 21-10-05 / 자이언트 원효로바이크 / 210,000원

9) Wheelset : DT-Swiss PR 1600 Spline
  - Order date/Store/Price : 21-10-07 / Bike24.de / € 500.63
  - Spec : DT-Swiss PR 1600 Spline DB 23, Inner 18mm, Outer 22mm, Height 23mm
             DT-Swiss RWS QR Front 5x100mm and Rear 5x135mm
             DT-Swiss Star Ratchet DT Superlight 54 T

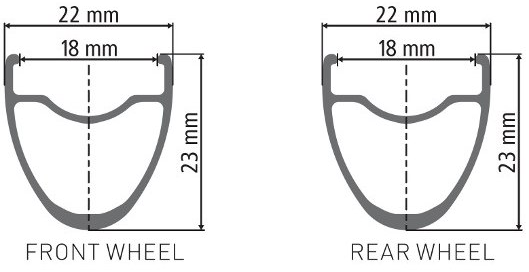

Wheelset Spec
Wheels/rims pressure/dimension



10) Chainring : Absolute Black oval Chaingring

  - 중고나라 거래날짜/판매자/가격 : 21-10-14/ 고감독7 /50,000원 (Retail 120,000원)
  - Spec : Absolute Black OVAL CX/Gravel 1X Direct Mount n.w for Sram cranks, 123g

11) Tire Tube & Patch : tubilito 700c Turbo CX/Gravel 60g x 2ea + Patch / 48,360원 / 바이 바이씨클

12) Disk Rotor : Avid G3 Cleansweep 160mm x 2ea / 8,000원


4. To-be Mod Parts

1) Carbon Handle bar
2) Disk Brake Rotor : Shimano XT RT-MT800SE Center lock Disk rotor 160mm x 2 / 108,800원
3) Winter Wheel&Tire set
   - Tire : G-One Ultrabite, Wheelset : Alex Rims TD19/Shimano TX505, Rotor : Shimano RT10

5. Service History

1) 흑석동자전거포/ 21-10-29/ 17,000원 / 11단 로드 휠셋 교체 후 1.85mm 호환 스페이서 추가 작업, 드레일러 교정 등
